MiniTRX-Z
MiniTRX-Z

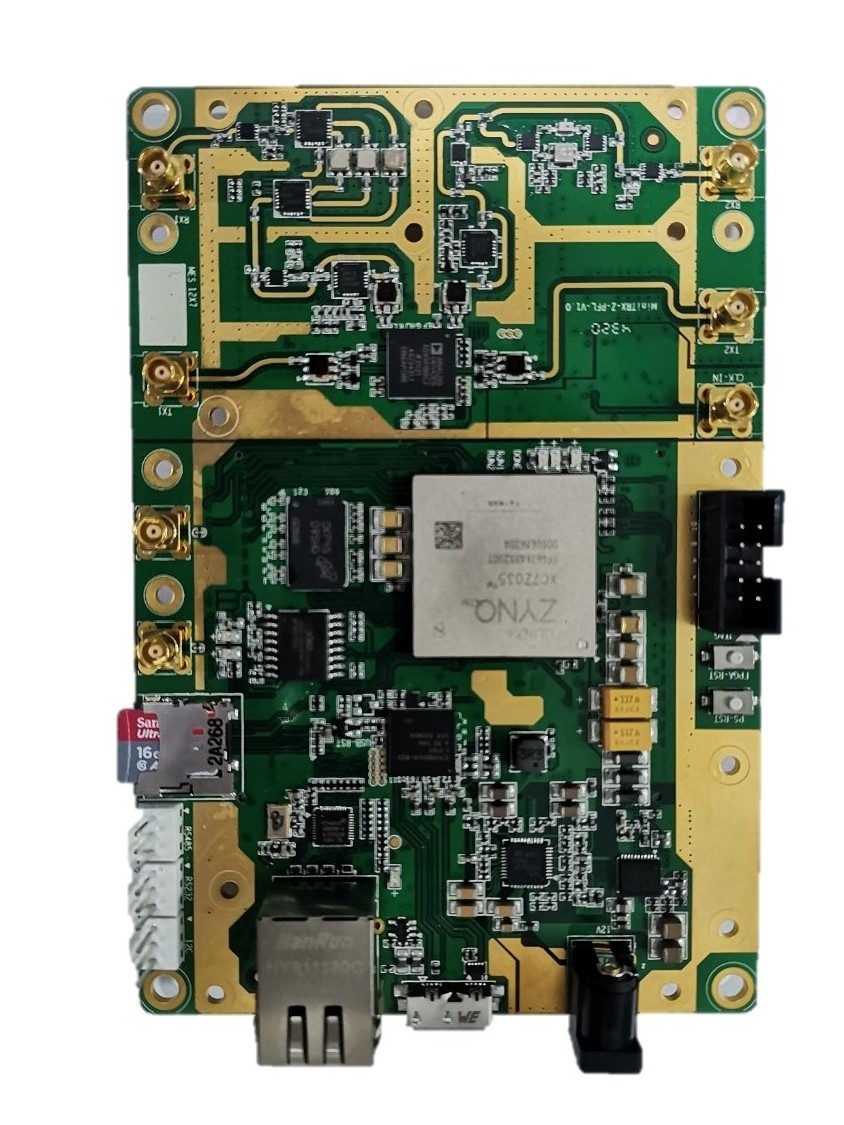

MiniTRX-Z is a low-power and small footprint board, based on ADI's RadioVerseTM technology AD9361, enables dramatic reduction in design cycles of your products.
HJX MiniTRX-Z has been added to ADI's RadioVerseTM 3rd Party Reference Designs and Hardware
Product Details
Key Features
- FPGA:Xilinx Zynq XC7Z035-2FFG676I
- DDR:1GB DDR3
- FLASH:256Mb QSPI
- SD:MicroSD
- Ethernet:10/100/1000M
- USB:USB3.0
- Communication Interface:RS232/RS422/I2C
- Sensor:Humidity Sensor with Integrated Temperature
- User Interface:GPIO
- Rx LNA range:300MHz~6GHz
- RF Digital Step Attenuator(DSA):0~31.5dB attenuation range in 0.5dB steps(1MHz to 4GHz)
- Bypass LNA and DSA to support Rx:70MHz~6.0GHz
- Size: 140mm*95mm
- Analog Devices AD9361-BBCZ Integrated RF Agile Transceiver™
RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
Band: 70 MHz to 6.0 GHz
TDD and FDD operation
Tunable channel BW:<200 kHz to 56 MHz
Supports MIMO radio: < 1 sample sync on both ADC and DAC
Miniature RF connectors – 4 TX, 4 RX, 2 TX monitor

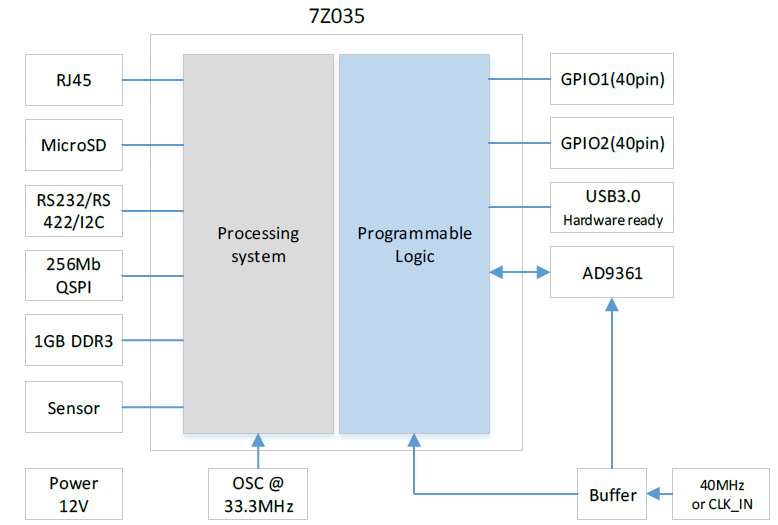

Figure2 - Simplified Block Diagram
MiniTRX-Z Getting Started Design

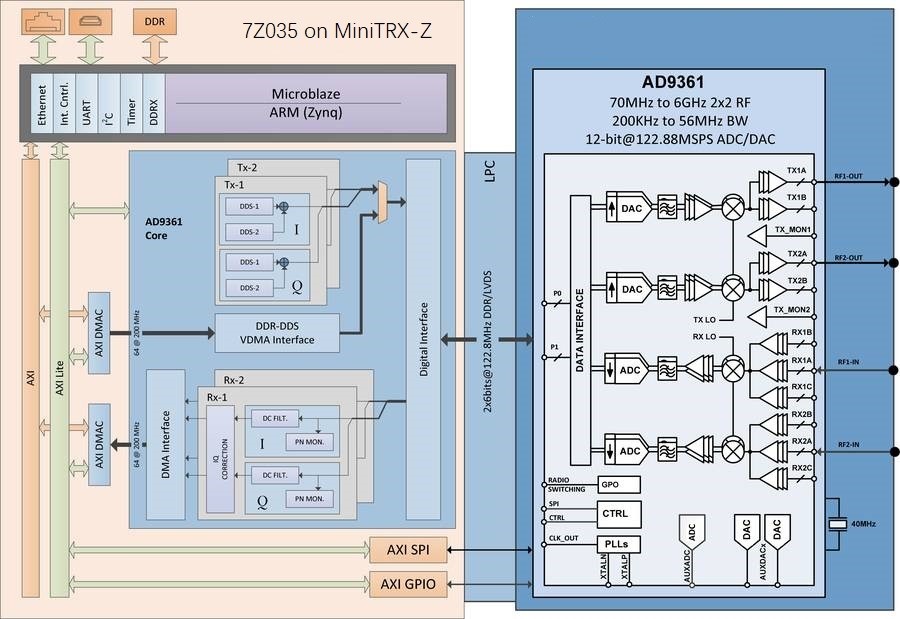

The Getting Started design implements the data interfaces to/from the AD9361 RF transceiver through which baseband signals are mixed to RF for over-the-air loopback from transmitter to receiver. Data path and control signals between the AD9361 and Zynq SoC are shown in Figure3.
- MiniTRX-Z No-OS Software: based on ADI’s AD9361 No-OS API Branch 2017_R1
Figure3 - HDL Reference DesignMiniTRX-Z Interface
(1) MCX AD9361 RX1
(2) MCX AD9361 TX1
(3) MCX AD9361 TX2
(4) MCX AD9361 RX2
(5) MCX CLK_IN ( 可選外參考時(shí)鐘)
(6) JTAG
(7) Power 12V
(8) USB3.0
(9) RJ45
(10) I2C
(11) RS232
(12) RS422
(13) MicroSD
Getting Started Guide
This guide will show you how to setup MiniTRX-Z board and your computer to get started.
MiniTRX-Z Getting Started Guide v1.1.pdf
